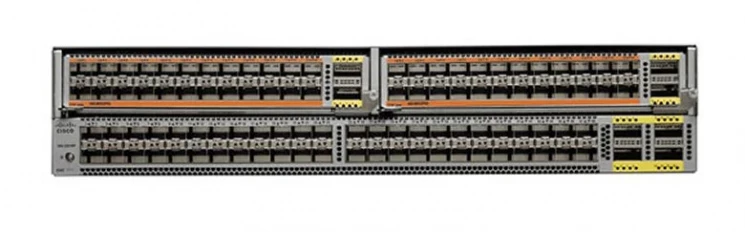

Коммутатор Cisco Nexus N5K-C56128P

Layer 2 IEEE 802.1p (class of service [CoS])

8 unicast queues and 8 multicast queues per port

Per-port QoS configuration

CoS trust

Port-based CoS assignment

Modular QoS CLI (MQC) compliance: IPv4 and IPv6

ACL-based QoS classification (Layers 2, 3, and 4)

Flexible TCAM carving

MAC and ARP hardware carving

MQC CoS marking

Per-port virtual output queuing

CoS-based egress queuing

Egress strict-priority queuing

Egress port-based scheduling: Deficit Weighted Round-Robin (DWRR)

Control-Plane Policing (CoPP): IPv4 and IPv6

Ingress ACLs (standard and extended) on Ethernet and virtual Ethernet ports

Standard and extended Layer 2 ACLs: MAC addresses, protocol type, etc.

Standard and extended Layer 3 and 4 ACLs: IPv4 and IPv6, Internet Control Message Protocol (ICMP and ICMPv6), TCP, User Datagram Protocol (UDP), etc.

Ingress policing

VLAN-based ACLs (VACLs)

Port-based ACLs (PACLs)

Named ACLs

Optimized ACL distribution

ACLs on virtual terminals (vtys)

ACL logging (IPv4 only)

Dynamic Host Configuration Protocol (DHCP) snooping with Option 82

Dynamic ARP Inspection

IP source guard

DHCP relay (up to 32 destinations)

Ethernet port security

IPv6 RACL, PACL, and VACL

iSCSI type-length-value (TLV)

SNMPv2-SMI

CISCO-SMI

SNMPv2-TM

SNMPv2-TC

IANA-ADDRESS-FAMILY-NUMBERS-MIB

IANAifType-MIB

IANAiprouteprotocol-MIB

HCNUM-TC

CISCO-TC

SNMPv2-MIB

SNMP-COMMUNITY-MIB

SNMP-FRAMEWORK-MIB

SNMP-NOTIFICATION-MIB

SNMP-TARGET-MIB

SNMP-USER-BASED-SM-MIB

SNMP-VIEW-BASED-ACM-MIB

CISCO-SNMP-VACM-EXT-MIB

UDP-MIB

TCP-MIB

OSPF-MIB

BGP4-MIB

CISCO-HSRP-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-Virtual-Interface-MIB

CISCO-VTP-MIB

ENTITY-MIB

IF-MIB

CISCO-ENTITY-EXT-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

CISCO-ENTITY-SENSOR-MIB

CISCO-FLASH-MIB

CISCO-SYSTEM-MIB

CISCO-SYSTEM-EXT-MIB

CISCO-IP-IF-MIB

CISCO-IF-EXTENSION-MIB

CISCO-SERVER-INTERFACE-MIB

CISCO-NTP-MIB

CISCO-IMAGE-MIB

CISCO-IMAGE-CHECK-MIB

CISCO-IMAGE-UPGRADE-MIB

CISCO-CONFIG-COPY-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-BRIDGE-MIB

DIFFSERV-DSCP-TC

NOTIFICATION-LOG-MIB

DIFFSERV-MIB

CISCO-CALLHOME-MIB

CISCO-PROCESS-MIB

RMON-MIB

CISCO-RMON-CONFIG-MIB

CISCO-HC-ALARM-MIB

LLDP-MIB

CISCO-AAA-SERVER-MIB

CISCO-AAA-SERVER-EXT-MIB

CISCO-COMMON-ROLES-MIB

CISCO-COMMON-MGMT-MIB

CISCO-RADIUS-MIB

CISCO-SECURE-SHELL-MIB

TCP/IP MIBs

INET-ADDRESS-MIB

TCP-MIB

CISCO-TCP-MIB

UDP-MIB

IP-MIB

CISCO-IP-PROTOCOL-FILTER-MIB

CISCO-DNS-CLIENT-MIB

CISCO-PORTSECURITY-MIB

START-MIB

CISCO-LICENSE-MGR-MIB

CISCO-FEATURE-CONTROL-MIB

CISCO-CDP-MIB

CISCO-RF-MIB

CISCO-ETHERNET-FABRIC-EXTENDER-MIB

CISCO-BRIDGE-MIB

CISCO-FCOE-MIB

CISCO-PORTCHANNEL-MIB

CISCO-ZS-MIB

IEEE 802.1D: Spanning Tree Protocol

IEEE 802.1p: CoS prioritization

IEEE 802.1Q: VLAN tagging

IEEE 802.1Qaz: Enhanced transmission selection

IEEE 802.1Qbb: Per-priority Pause

IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol

IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol

IEEE 802.3: Ethernet

IEEE 802.3ad: LACP with fast timers

IEEE 802.3ae: 10 Gigabit Ethernet

IEEE 802.3ba: 40 Gigabit Ethernet (Applies to 40G SR4, SR4-S, LR4, LR4-S, and CSR4 optics only)

SFF 8431 SFP+ CX1 support

RMON

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

AS/NZS 60950-1

GB4943

47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

CNS13438 Class A

EN55024

CISPR24

EN300386

KN 61000-4 series

Cisco Nexus 5672UP и 5672UP-16G:  (4.4 х 43.9 х 76.2 см)

Cisco Nexus 56128P: (8,8 х 43,9 х 76,2 см)

Cisco Nexus 5672UP / 5672UP-16G: 15 кг

Cisco Nexus 56128P: 27 кг
