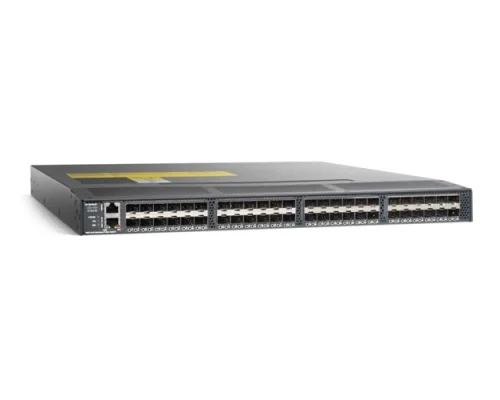

Коммутатор Cisco MDS C9148T-48PITK9

Поставляется с 48 активированными портами 4, 8, 16 и 32 Гбит/с.

Cisco MDS 9148T Multilayer Fabric Switch - доступный, универсальный, легко управляемый коммутатор для сетей SAN начального уровня и для сетей отделов предприятий. Коммутатор, выполненный на специализированных ИС для сетей хранения типа «коммутатор на кристалле», обеспечивает выделенную полосу пропускания Fibre Channel 32 Гбит/с на каждом из 48 портов Cisco MDS 9148T. Для простоты заказа он поставляется в полной 48-портовой конфигурации.

Для упрощения настройки готового решения предусмотрен мастер быстрой настройки Quick Configuration Wizard. Предусмотрены такие функции корпоративного класса, как неразрушающая модернизация, виртуальные SAN (VSAN), межсетевая маршрутизация Inter-VSAN Routing (IVR), обеспечение качества обслуживания QOS, агрегирование каналов (Port Channels), виртуализация портов N-Port ID Virtualization (NPIV).

Для обеспечения высокой доступности установлены резервированные блоки питания и вентиляторы, допускающие замену в "горячем" режиме.

Protocols:Fibre Channel standards● FC-PH, Revision 4.3 (ANSI INCITS 230-1994)● FC-PH, Amendment 1 (ANSI INCITS 230-1994/AM1-1996)● FC-PH, Amendment 2 (ANSI INCITS 230-1994/AM2-1999)● FC-PH-2, Revision 7.4 (ANSI INCITS 297-1997)● FC-PH-3, Revision 9.4 (ANSI INCITS 303-1998)● FC-PI, Revision 13 (ANSI INCITS 352-2002)● FC-PI-2, Revision 10 (ANSI INCITS 404-2006)● FC-PI-3, Revision 4 (ANSI INCITS 460-2011)● FC-PI-4, Revision 8 (ANSI INCITS 450-2008)● FC-PI-5, Revision 6 (ANSI INCITS 479-2011)● FC-PI-6 (ANSI INCITS 512-2015)● FC-FS, Revision 1.9 (ANSI INCITS 373-2003)● FC-FS-2, Revision 1.01 (ANSI INCITS 424-2007)● FC-FS-2, Amendment 1 (ANSI INCITS 424-2007/AM1-2007)● FC-FS-3, Revision 1.11 (ANSI INCITS 470-2011)● FC-FS-4● FC-LS, Revision 1.62 (ANSI INCITS 433-2007)● FC-LS-2, Revision 2.21 (ANSI INCITS 477-2011)● FC-LS-3, Includes revision 3.53● FC-SW-2, Revision 5.3 (ANSI INCITS 355-2001)● FC-SW-3, Revision 6.6 (ANSI INCITS 384-2004)● FC-SW-4, Revision 7.5 (ANSI INCITS 418-2006)● FC-SW-5, Revision 8.5 (ANSI INCITS 461-2010)● FC-SW-6● FC-GS-3, Revision 7.01 (ANSI INCITS 348-2001)● FC-GS-4, Revision 7.91 (ANSI INCITS 387-2004)● FC-GS-5, Revision 8.51 (ANSI INCITS 427-2007)● FC-GS-6, Revision 9.4 (ANSI INCITS 463-2010)● FC-GS-7, Includes revision 10.8● FCP, Revision 12 (ANSI INCITS 269-1996)● FCP-2, Revision 8 (ANSI INCITS 350-2003)● FCP-3, Revision 4 (ANSI INCITS 416-2006)● FCP-4, Revision 2b (ANSI INCITS 481-2011)● FC-SB-2, Revision 2.1 (ANSI INCITS 349-2001)● FC-SB-3, Revision 1.6 (ANSI INCITS 374-2003)● FC-SB-3, Amendment 1 (ANSI INCITS 374-2003/AM1-2007)● FC-SB-4, Revision 3.0 (ANSI INCITS 466-2011)● FC-SB-5, Revision 2.00 (ANSI INCITS 485-2014)● FC-BB-6, Revision 2.00 (ANSI INCITS 509-2014)● FC-BB-2, Revision 6.0 (ANSI INCITS 372-2003)● FC-BB-3, Revision 6.8 (ANSI INCITS 414-2006)● FC-BB-4, Revision 2.7 (ANSI INCITS 419-2008)● FC-BB-5, Revision 2.0 (ANSI INCITS 462-2010)● FC-VI, Revision 1.84 (ANSI INCITS 357-2002)● FC-SP, Revision 1.8 (ANSI INCITS 426-2007)● FC-SP-2, Revision 2.71 (ANSI INCITS 496-2012)● FAIS, Revision 1.03 (ANSI INCITS 432-2007)● FAIS-2, Revision 2.23 (ANSI INCITS 449-2008)● FC-IFR, Revision 1.06 (ANSI INCITS 475-2011)● FC-FLA, Revision 2.7 (INCITS TR-20-1998)● FC-PLDA, Revision 2.1 (INCITS TR-19-1998)● FC-Tape, Revision 1.17 (INCITS TR-24-1999)● FC-MI, Revision 1.92 (INCITS TR-30-2002)● FC-MI-2, Revision 2.6 (INCITS TR-39-2005)● FC-MI-3, Revision 1.03 (INCITS TR-48-2012)● FC-DA, Revision 3.1 (INCITS TR-36-2004)● FC-DA-2, Revision 1.06 (INCITS TR-49-2012)● FC-MSQS, Revision 3.2 (INCITS TR-46-2011)● Fibre Channel classes of service: Class 2, Class 3, and Class F● Fibre Channel standard port types: E, F, and B● Fibre Channel enhanced port types: SD, ST, and TE● FC-NVMe● In-band management using IP over Fibre Channel (RFC 2625)● IPv6, IPv4, and Address Resolution Protocol (ARP) over Fibre Channel (RFC 4338)● Extensive IETF-standards-based TCP/IP, Simple Network Management Protocol Version 3 (SNMPv3), andRemote Monitoring (RMON) MIBs

Ports:● Fixed-switch form factor with 48 SFP+ ports base● Entry-level 24-port preactivated base model with flexibility to turn on any 24 ports● Incremental ports◦ 8-ports upgrade license offers the option of upgrading to 32, 40, and 48 ports

Security:

● VSAN fabric isolation● Intelligent packet inspection at port level● Hardware zoning by Access Control Lists (ACLs)● Fibre Channel Security Protocol (FC-SP) switch-to-switch authentication● FC-SP host-to-switch authentication● Role-based access control (RBAC) using RADIUS, TACACS+, or Lightweight Directory Access Protocol(LDAP) authentication, authorization, and accounting (AAA) functions● Secure FTP (SFTP)● Secure Shell Protocol Version 2 (SSHv2)● Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard(AES)● Control-plane security● Cisco TrustSec®payload encryption● Secure Boot and Anti-counterfeit technology

Performance:● Port speed: 4-, 8-, 16-, and 32-Gbps autosensing with 32 Gbps of dedicated bandwidth per port● Aggregate bandwidth of 1.5-Tbps end-to-end full duplex● Buffer credits: Up to 8300 for a group of 16 ports, with a default of 500 buffer credits per port and amaximum of 8270 buffer credits for a single port in the group● Port groups: 3 port groups of 16 ports each● Port channel: Up to 16 load-balanced physical links grouped in one port channel

Diagnostics:

● Power-On-Self-Test (POST) diagnostics● Online Health Management System (OHMS) diagnostics● Internal loopbacks● SPAN● Fibre Channel traceroute● Fibre Channel ping● Fibre Channel debug● Cisco Fabric Analyzer● Syslog● Port-level statistics● Link diagnostics (E-port and F-port links)● Read Diagnostic Parameter

Serviceability:

● Configuration file management● Call Home● Port beaconing● Link cable beacon● System LEDs● SNMP traps for alerts

Reliability and availability:● Cisco In-Service Software Upgrade (ISSU)● Hot-swappable, dual redundant power supplies● Hot-swappable fan tray with switch integrated temperature and power management● Hot-swappable SFP+ optics● Stateful process restart● Any port configuration for port channels● Fabric-based multipathing● Per-VSAN fabric services● Port tracking● Virtual Router Redundancy Protocol (VRRP) for management IP interface● FEC with HBA ports● Buffer-to-buffer state change notification with HBA ports

Network management:● Management access through 2 out-of-band Ethernet ports◦ mgmt0: 10/100/1000BASE-T port◦ mgmt1: 1/10G SFP+ port#● RS-232 serial console port● USB power-on auto-provision port● Access protocols● Command-Line Interface (CLI) using the console and Ethernet port● SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access● Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S)● NX-API for REST● full access through HTTPS REST● Distributed device alias service● Network security● Per-VSAN RBAC using LDAP, RADIUS, and TACACS+-based AAA functions● Simple File Transfer Protocol (SFTP)● SSHv2 implementing AES● SNMPv3 implementing AES● Cisco Data Center Network Manager (DCNM)

Programming interfaces:● Scriptable CLI● Cisco DCNM web services API● NX-API RESTful interfaces● Onboard Python interpreter● Cisco Embedded Event Manager (EEM)● Cisco NX-OS Software scheduler

Physical dimensions (HxWxD):● 1 Rack Unit (1RU) (1.72 x 17.3 x 22.3 in. [4.37 x 43/9 x 56.6 cm]) excluding Power Supply Unit (PSU) andfan-tray handles● 16.7 lb. (8.5 kg)

Power:● 80 Plus Platinum certified power supplies● Power supply options◦ 650W AC in base model, port-side exhaust variant (2 per switch)◦ 650W AC in base model, port-side intake variant (2 per switch)● Power cord◦ IEC60320 C14 plug on 650W power supply connecting to a notched C15 socket connector (checkTable 6 later in this document for power cords specific to regions)● AC input: 100 to 240 VAC (10% range)● Frequency: 50 to 60 Hz (nominal)● Typical power consumption◦ 217W for Idle 48-Port switch without optics modules◦ 251W for 48-Port switch with 24 32G SW optics modules under typical conditions◦ 297W for 48-Port switch with 48 32G SW optics modules under typical conditions● Airflow◦ Back to front (toward ports) using port-side exhaust fans◦ Front to back (inward from ports) using port-side intake fans◦ 50 Cubic Feet per Minute (CFM) through system fan assembly at 77°F (25°C)◦ 100 CFM maximum

Temperature range:● Temperature, ambient operating:◦ 32 to 104°F (0 to 40°C) with port-side exhaust and intake airflow variants● Temperature, ambient nonoperating and storage: –40 to 158°F (–40 to 70°C)● Relative humidity, ambient (noncondensing) operating: 10 to 90%● Relative humidity, ambient (noncondensing) nonoperating and storage: 10 to 95%● Altitude, operating: –197 to 6500 ft (–60 to 2000m)

Approvals and compliance:● Safety compliance● CE Marking● UL 60950● CAN/CSA-C22.2 No. 60950● EN 60950● IEC 60950● TS 001● AS/NZS 3260● IEC60825● EN60825● 21 CFR 1040● EMC compliance● FCC Part 15 (CFR 47) Class A● ICES-003 Class A● EN 55022 Class A● CISPR 22 Class A● AS/NZS 3548 Class A● VCCI Class A● EN 55024● EN 50082-1● EN 61000-6-1● EN 61000-3-2● EN 61000-3-3

Fabric services:● Name server● Registered State Change Notification (RSCN)● Login services● Fabric Configuration Server (FCS)● Broadcast● In-order delivery

Advanced functions:● VSAN● IVR● Port Channel with multipath load balancing● Flow- and zone-based QoS
