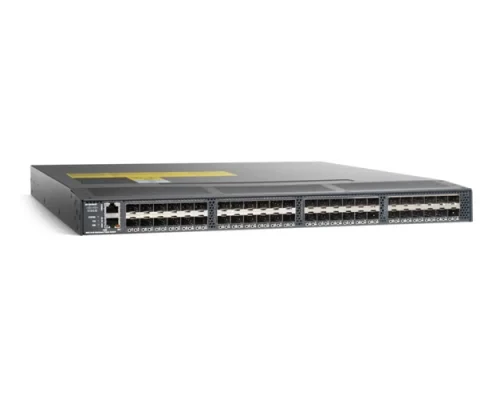

Коммутатор Cisco MDS 9148S

Поставляется с 48 активированными портами 2, 4, 8, и 16 Гбит/с.

Cisco MDS 9148S Multilayer Fabric Switch - доступный, универсальный, легко управляемый коммутатор для сетей SAN начального уровня и для сетей отделов предприятий. Коммутатор, выполненный на специализированных ИС для сетей хранения типа «коммутатор на кристалле», обеспечивает выделенную полосу пропускания Fibre Channel 16 Гбит/с на каждом из 48 портов Cisco MDS 9148S. Для простоты заказа он поставляется в полной 48-портовой конфигурации.

Для упрощения настройки готового решения предусмотрен мастер быстрой настройки Quick Configuration Wizard. Предусмотрены такие функции корпоративного класса, как неразрушающая модернизация, виртуальные SAN (VSAN), межсетевая маршрутизация Inter-VSAN Routing (IVR), обеспечение качества обслуживания QOS, агрегирование каналов (Port Channels), виртуализация портов N-Port ID Virtualization (NPIV).

Для обеспечения высокой доступности установлены резервированные блоки питания и вентиляторы, допускающие замену в "горячем" режиме.

Protocols:● FC-PI-2, Revision 10 (ANSI INCITS 404-2006)● FC-PI-3, Revision 4 (ANSI INCITS 460-2011)● FC-PI-4, Revision 8 (ANSI INCITS 450-2008)● FC-PI-5, Revision 6 (ANSI INCITS 479-2011)● FC-FS, Revision 1.9 (ANSI INCITS 373-2003)● FC-FS-2, Revision 1.01 (ANSI INCITS 424-2007)● FC-FS-2, Amendment 1 (ANSI INCITS 424-2007/AM1-2007)● FC-FS-3, Revision 1.11 (ANSI INCITS 470-2011)● FC-LS, Revision 1.62 (ANSI INCITS 433-2007)● FC-LS-2, Revision 2.21 (ANSI INCITS 477-2011)● FC-SW-2, Revision 5.3 (ANSI INCITS 355-2001)● FC-SW-3, Revision 6.6 (ANSI INCITS 384-2004)● FC-SW-4, Revision 7.5 (ANSI INCITS 418-2006)● FC-SW-5, Revision 8.5 (ANSI INCITS 461-2010)● FC-GS-3, Revision 7.01 (ANSI INCITS 348-2001)● FC-GS-4, Revision 7.91 (ANSI INCITS 387-2004)● FC-GS-5, Revision 8.51 (ANSI INCITS 427-2007)● FC-GS-6, Revision 9.4 (ANSI INCITS 463-2010)● FCP-2, Revision 8 (ANSI INCITS 350-2003)● FCP-3, Revision 4 (ANSI INCITS 416-2006)● FCP-4, Revision 2b (ANSI INCITS 481-2011)● FC-SB-2, Revision 2.1 (ANSI INCITS 349-2001)● FC-SB-3, Revision 1.6 (ANSI INCITS 374-2003)● FC-SB-3, Amendment 1 (ANSI INCITS 374-2003/AM1-2007)● FC-SB-4, Revision 3.0 (ANSI INCITS 466-2011)● FC-SB-5, Revision 2.00 (ANSI INCITS 485-2014)● FC-BB-6, Revision 2.00 (ANSI INCITS 509-2014)● FC-BB-2, Revision 6.0 (ANSI INCITS 372-2003)● FC-BB-3, Revision 6.8 (ANSI INCITS 414-2006)● FC-BB-4, Revision 2.7 (ANSI INCITS 419-2008)● FC-BB-5, Revision 2.0 (ANSI INCITS 462-2010)● FC-VI, Revision 1.84 (ANSI INCITS 357-2002)● FC-SP, Revision 1.8 (ANSI INCITS 426-2007)● FC-SP-2, Revision 2.71 (ANSI INCITS 496-2012)● FAIS, Revision 1.03 (ANSI INCITS 432-2007)● FAIS-2, Revision 2.23 (ANSI INCITS 449-2008)● FC-IFR, Revision 1.06 (ANSI INCITS 475-2011)● FC-FLA, Revision 2.7 (INCITS TR-20-1998)● FC-PLDA, Revision 2.1 (INCITS TR-19-1998)● FC-Tape, Revision 1.17 (INCITS TR-24-1999)● FC-MI, Revision 1.92 (INCITS TR-30-2002)● FC-MI-2, Revision 2.6 (INCITS TR-39-2005)● FC-MI-3, Revision 1.03 (INCITS TR-48-2012)● FC-DA, Revision 3.1 (INCITS TR-36-2004)● FC-DA-2, Revision 1.06 (INCITS TR-49-2012)● FC-MSQS, Revision 3.2 (INCITS TR-46-2011)● Fibre Channel classes of service: Class 2, Class 3, and Class F● Fibre Channel standard port types: E, F and FL● Fibre Channel enhanced port types: SD, ST, and TE● In-band management using IP over Fibre Channel (RFC 2625)● IPv6, IPv4, and Address Resolution Protocol (ARP) over Fibre Channel (RFC 4338)● Extensive IETF-standards-based TCP/IP, SNMPv3, and remote monitoring (RMON) MIBsPorts:● Fixed configuration with 48 ports of 16-Gbps Fibre Channel● Available in a 12-port configurable base or as a bundle with all 48 ports enabled● Enable incremental ports on the 12-port base model, with the 12-port On-Demand Activation licensePerformance:● Port speed: 2/4/8/16-Gbps autosensing with 16 Gbps of dedicated bandwidth per port● Buffer credits: Up to 256 for a group of 4 ports, with a default of 64 buffer credits per port and a maximum of 253 buffer credits for a single port in the group● PortChannel: Up to 16 physical linksReliability and availability:● ISSU● Hot-swappable, dual redundant power supplies● Hot-swappable fan tray with integrated temperature and power management● Hot-swappable SFP+ optics● Passive backplane● Stateful process restart● Any port configuration for PortChannels● Fabric-based multipathing● Per-VSAN fabric services● Port tracking● VRRP for management connections● Online diagnosticsNetwork management:● Access methods ◦ Out-of-band 10/100/1000 Ethernet port ◦ RS-232 serial console port ◦ USB (Software support to be enabled in a future release)● Access protocols ◦ CLI using the console and Ethernet ports ◦ SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access ◦ Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S)● Distributed device alias service● Network security ◦ Per-VSAN RBAC using RADIUS and TACACS+-based authentication, authorization, and accounting (AAA) functions ◦ SFTP ◦ SSHv2 implementing AES ◦ SNMPv3 implementing AES● Management applications ◦ Cisco MDS 9000 Family CLI ◦ Cisco Prime DCNMProgramming interfaces:● Scriptable CLI● Cisco Prime DCNM web services APIPhysical dimensions (HxWxD):● Dimensions (H x W x D): 1.72 x 17.16 x 16.34 in. (4.37 x 43.59 x 41.50 cm), 1RU● Rack-mountable in standard 19-inch Electronic Industries Alliance [EIA] rack● Weight of fully configured chassis: 19.84 lb (9 kg)Power:● Power supply: 300W AC (2 per switch)● Power cord: Notched C15 socket connector connecting to C16 plug on power supply● AC input: 100 to 240V AC (10% range)● Frequency: 50 to 60 Hz (nominal)● Maximum power consumption: ◦ 100W (on base model config running 16G 100% traffic load at 25C) ◦ 125W (on fully populated config running 16G 100% traffic load at 25C)● Airflow: back to front (toward ports)● 200 linear feet per minute (LFM) through system fan assembly● Cisco recommends maintaining a minimum air space of 2.5 in. (6.4 cm) between walls and chassis air vents and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheatingTemperature range:● Temperature, ambient operating: 32 to 104°F (0 to 40°C)● Temperature, ambient non-operating and storage: -40 to 158°F (-40 to 70°C)● Relative humidity, ambient (noncondensing) operating: 10 to 90%● Relative humidity, ambient (noncondensing) non-operating and storage: 10 to 95%● Altitude, operating: -197 to 6500 ft (-60 to 2000m)Approvals and compliance:● Safety compliance● CE Marking● UL 60950● CAN/CSA-C22.2 No. 60950● EN 60950● IEC 60950● TS 001● AS/NZS 3260● IEC60825● EN60825● 21 CFR 1040● EMC compliance● FCC Part 15 (CFR 47) Class A● ICES-003 Class A● EN 55022 Class A● CISPR 22 Class A● AS/NZS 3548 Class A● VCCI Class A● EN 55024● EN 50082-1● EN 61000-6-1● EN 61000-3-2● EN 61000-3-3Fabric services:● Name server● Registered State Change Notification (RSCN)● Login services● Fabric Configuration Server (FCS)● Public loop● Broadcast● In-order deliveryAdvanced functions:● Name server● Registered State Change Notification (RSCN)● Login services● Fabric Configuration Server (FCS)● Public loop● Broadcast● In-order deliveryAdvanced functions:● VSAN● IVR● PortChannel with multipath load balancing● Flow-based and zone-based QoSSystem Requirements:Cisco MDS 9000 NX-OS Software Release 6.2(9) or later supporting Cisco MDS 9148S and Cisco Prime DCNM
