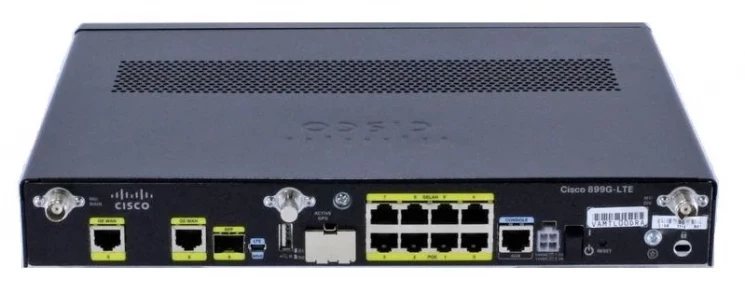

Маршрутизатор C899G-LTE-GA-K9

4G LTE modem form factor

● Embedded (included with the router) ● Upgrade FW Image Switching provisioning from (–GA SKUs) flash (FW-MC7304-LTE-AU or FWMC7304-LTE-GB)

Important 4G LTE features

● Automatic switch failover between primary and backup link ● Multichannel-interface-processor (MIP) profile configuration ● CDMA data retry ● 3G MIB with 4G LTE MIB extension and traps ● Remotely initiated data callback using voice ● Remotely initiated data callback using Short Message Service (SMS) ● Remote firmware upgrade over 4G LTE ● Virtual diagnostic monitoring ● SIM lock and unlock capabilitie

MIBs

● Enhanced 3G MIB with 4G MIB extension (4G parameters are covered with 3G MIB and 3G MIB extension) ● ENTITY MIB ● IF MIB ● 3G WWAN MIB persistence

4G LTE network management and diagnostics

● In-band and out-of-band management using Telnet (Cisco IOS Software command-line interface [CLI]) and SNMP, including MIB II and other extensions ● Industry-standard 4G LTE diagnostics and monitoring tools (Qualcomm CDMA Air Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM])

Modem information

● Modem form factor: Embedded Peripheral Component Interconnect (PCI) minicard ● C88xG-4G-GA-K9 and C89xG(W)-LTE-GA-K9: Sierra Wireless MC7304 with Qualcomm MDM9215

Wireless technologies supported (performance and throughput)

C88xG-4G-GA-K9 and C89xG(W)-LTE-GA-K9Cisco LTE 2.0 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7) Backward compatibility: ● UMTS and HSPA+: 850, 900, 1900, and 2100 MHz ● Quad-band EDGE, GPRS, and GSM: 800, 900, 1800, and 1900 MHz ● HSPA+ speed DL up to CAT20 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps) ● DC-HSPA+ speed DL with CAT24 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps)
